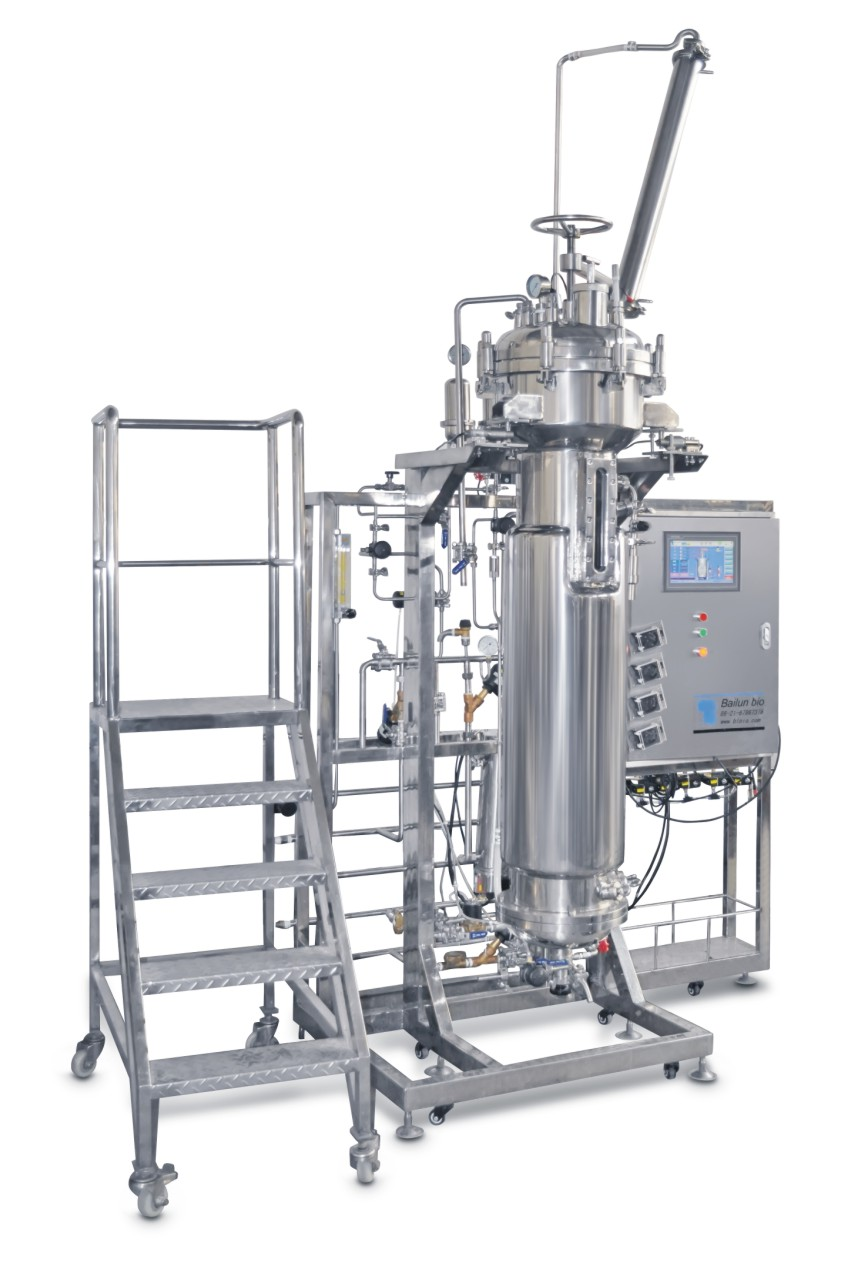

100 Liter Stainless Steel Airlift Fermenter BLBIO-100SQ

Let us discuss the reason to believe that this fermenter is not one more equipment, but a competitive advantage of your lab.

Why 100 Liter Stainless Steel Airlift Fermenter BLBIO-100SQ?

• High gas-liquid transfer efficiency:to improve the dissolution of oxygen and quicker fermentation.
• Reduced energy usage-Its energy: requirements are 70-80 percent less than those of mechanical stirring.
• Easy construction, and contaminant resistant:less time is required on cleaning, and the chances of contamination are also minimized.
• Automated, adjustable control:may also be used to easily monitor or regulate pH, DO, and temperature and gas flow.
• Scaled-up & piloted to the highest level:reliable when it comes to antibiotics, amino acids, vitamins, and enzymes, and even to environmental biotech.

Have you ever had some trouble with shear-sensitive cells or when a lot of viscous broth? Other advantages of an airlift fermenter are mild mixing, versus damaging sensitive organisms and causing mechanical stress.

Description of Fermenters and Unique benefits

The 100 Liter Stainless Steel Airlift Ферментер is a product of the group of airlift fermenters characterized by:

• Easy internal design, and in-built guide tube.
• Dissolved oxygen performance because of mixing by air-lift.
• Energy saving in comparison with mechanically mixed reactor.
• Superb scalability- suited in production and pilot processes.

It is very versatile with these features: it can be used in manufacturing of industrial enzymes, amino acids, antibiotics, xanthan gum, citric acid, and even during wastewater treatment.

Have you ever asked the reason why the best cultivators adopt airlift instead of mechanical stirring? In this manner, the secret lies in less energy directly and an improved rate of oxygen transfer that is a win/win, process economy, and yield.

Технические характеристики

Discover the technical aspects of 100 Liter Stainless Steel Airlift Ферментер that makes it shine in the technical design and usage:

Stainless Steel Airlift Fermenter Technical Parameters:

Параметр	Дописание
Общий объем	5л~1000л,5000л,50кл и т. д.
Рабочий объем	30%~70%
Система перемешивания	Перемешивание воздушного потока
Стерилизация	Стерилизация на месте
Чистый	Очистите на месте с помощью распылителя.
Контроль аэрации	Ручное управление с помощью роторного счетчика (стандартно) Автоматическое управление с помощью массового расходомера (опция)
Кормление	Автоматическая подача с помощью стационарного перистальтического насоса (стандартно) Перистальтический насос с регулируемой скоростью (опция)
Контроль пенообразования	Автоматическое добавление пеногасителя с помощью перистальтического насоса.
Контроль температуры	Автоматическое управление, диапазон электрического нагрева: источник воды добавляет от 5 ℃ до 70 ℃.
контроль рН	2,00-12,00±0,05pH, автоконтроль путем добавления кислоты и основания, датчик pH (Hamilton/Mettler, Швейцария)
ДЕЛАТЬ контроль	0-150±3%, отображающий точность 0,1%, датчик растворенного кислорода от Hamilton/Mettler, Швейцария. Соединение DO с перемешиванием, кислородом.
Выборка	Пробоотборный клапан, стерилизация банок отдельно, ручной
Урожай	Нижний клапан с нулевой мертвой зоной (Gemu/Burket, Германия), стерилизация банок отдельно, ручная/автоматическая
Система подъема крышки	30–500 л имеют систему подъема крышки, 700–1000 л — отверстие для человека.
Давление	Автоматическое управление, датчик давления BD Германия
Выхлоп	Перед выпуском имеется конденсатор, управление осуществляется с помощью клапана схемы/пропорционального регулирующего клапана.
Параметры управления	10-дюймовый сенсорный экран, система управления ПЛК Siemens с параметрами контроля (перемешивание, pH, раствор кислорода, температура, подача, газ и т. д.), анализ данных, регистрация данных, вывод и печать данных, сигнализация о переполнении, переключение языка и другие функции.
Дополнительная конфигурация	Контроль газа O2/N2/CO2, датчик уровня, датчик OD, датчик мутности, датчик ОВП, система взвешивания, датчик живых клеток, свет и т. д.

Practical Applications

The 100 Liter Stainless Steel Airlift Ферментер could be used both by various industries and in research:

• Amino acids (glutamic acid, lysine, etc.)
• Enzyme production (glucoamylase, protease, cellulase)
• Vitamins and Anti-biotics
• Xanthan hydrocolloid, citrick acid
• Production of Single-Cell protein
• Environmental biotech (sewage treatment, waste valorization)

Its handling does not agitate delicate cultures and high gas transfer favors quick growth aerobically.

Do you have to increase scale and are you doing it out of lab shake flasks or bench-top fermenters? This airlift fermenter fills the void strangely well; it suits either pilot or small production scale.

How Airlift Mixing Changes Everything?

The airlift fermenter, as opposed to mechanical agitation, circulates liquid by use of rising gas bubbles inside a specially designed guide tube. This process:

• Lower cell shear-stress.
• It enhances transfer of oxygen.
• Minimizes power consumption (no motor-driven impeller).
• Provides cleaning of less complexity and less risks of being contaminated.

It is the ideal scheme when you require low shear conditions with shear sensitive cells or wish to eliminate the electric bill in the mass production.

How was the last time you figured out the cost of your energy? A change to airlift can save 70-80 per cent mixing energy.

Expert Control and Automation

On Siemens S7-200 series PLC and with 10 LCD touchscreen you have:

• All visible:ph, DO, temperature, aeration, feeding full view and real time.
• Automatically controlled:imposed goals; let the system maintain parameters at the goal values.
• The data logging and export features:allow you to review, analysis and optimize.
• Multilingual:freely switch between English, Chinese and others.

The in-built alarms alert of any out-of-spec conditions and your process remains safe and compliant.

Having Customization in mind?

Each process is individual. That is why you can personalize your 100 Liter Stainless Steel Airlift Ферментер with:

• Mass flow meters for precise gas blending (O2/N2/CO2)
• ORP, turbidity/od and live cell biomass sensors
• Accurate quantity systems of adding mediums Weight
• Data printing & remote-monitoring
• Phototrophic culture phototrophic culture

The fluidity makes your fermenter capable of adapting to changes in your process in the future.

Sustainability and Costs Saving

The airlift design does not only promise improved performance:

• Reduced power load:save power, reduce CO 2 footprint.
• Easier mechanical configuration:less moving parts entails less maintenance.
• More durability:higher life duration with stainless steel and fewer machining wear.
• Reduced risk of contamination:no seals of any kind in order to break.

Sustainability Is Makeup an Important Part of Your Production Strategy? A simple win is to switch to airlift as a way of making bioprocessing greener.

What Makes It Different to Traditional Fermenter?

	AIRLIFT STAINLESS STEEL FERMENTER 100 LITER BLBIO-100SQ	MECHANICAL STIRRED FERMENTER
Energy consumption	Significantly lower	High (motor driven)
Shear stress	Low (ideal for sensitive cells)	Выше
Complexity	Simpler, fewer moving parts	Complex mechanical seals & drives
Contamination risk	Ниже	Higher (seal failures, leaks)
Oxygen transfer	High due to bubble rise & guide tube	Depends on agitation speed & impeller design



Why Choose 100 Liter Stainless Steel Airlift Fermenter?

• Aerobic fermentation is designed at high levels of efficiency.
• Reduced energy consumption- save off operation costs.
• Easy transfer of Oxygen and smooth mixing.
• Highly automated control system that is flexible.
• Easy cleaning and less contamination is a result of a simple structure.
• Tested through the industries: enzymes, amino acids, antibiotics, waste treatment.

The Intelligence and the Transparency of Data

Control yourself every step:

• Touch screen interface:view trends and data in real time.
• In-house alarm system:this prevents process deviation that is costly.
• Information output and export:direct compatibility to quality management systems.

Do you want to compare batch performance on a month by month basis? View past information and examine it with ease to streamline operations.

Changing into Greener Bioprocess

In the globe that requires sustainability, such a fermenter is:

• More energy saving.
• Easier to clean (uses less water and chemicals).
• Lower risk of contamination (fewer cleaning cycles needed).

It is a minor move towards zero-waste biotech manufacturing without loss in performance.

Common Processes Which Are Advantageous

• High-volume aerobic fermentations (e.g., glutamic acid, lysine)
• Enzyme synthesis which required constant mild conditions
• Shear-sensitive organisms
• Bio treatment of wastewater in which energy expenses are of concern
• Lab to plant pilot scale production

Made to Suit the User, Made to Last

• High-quality stainless steel built.
• Swiss-made pH & DO sensors (Hamilton/Mettler).
• Pressure transmitters and German valves that are reliable.
• Scalable: offered between 5L and 50KL.

Regardless of whether you have 100L or you increase to 1000L, your system is consistent.

Get Future-Proofing your Fermentation Ready?

100 Liter Stainless Steel Airlift Ферментер is allowing better reliability in the process, reduced budget and adaptability to modern-day production and research needs.

Find out more, get pricing or set a consultation with one of our experts today by contacting BaiLun Bio.

Your new breakthrough should have the right equipment and it begins here.
