Mini Bioreactor Manufacturer for Laboratory Research & Screening
0.2L– 5L Total volume
Compact laboratory design
High-accuracy process control
25+ Years Bioreactor Manufacturing Experience
Exported to 30+ Countries
CE / ISO Certified
Complete One-stop Station Fermentation Solutions
Our Mini Bioreactor Solutions
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.
Precise Process Control
•Advanced PID control algorithm
•Real-time pH / DO / temperature monitoring
•Stable agitation and aeration control
•High repeatability for laboratory experiments
Compact & Space-Saving Design
•Small footprint for laboratories
•Easy installation and movement
•Suitable for university and R&D labs
•Flexible bench top configuration
High-Quality Construction
•High borosilicate glass vessel
•Stainless steel 304/316L support frame
•Corrosion-resistant components
•Durable laboratory-grade design
Intelligent Automation
•Touch screen controller
•Automatic parameter recording
•Recipe storage and export
•Remote monitoring optional
Flexible Laboratory Applications
•Multi-gas inlet options
•Various sensor integrations
•Custom software functions available
Sterile & Reliable Operation
•Off-site sterilization support
•Aseptic sampling system
•Sterile gas filtration
•Easy vessel cleaning and maintenance
Mini Bioreactor Applications
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.
| Parameter | Description |
| Total volume | 0.2L~5L |
| Working volume | 50%~70% |
| Tank | Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover |
| Stirring system | Mechanical drive(GJ type) or Magnetic drive(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable.Stir speed: 50~1000rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control（Dissolved Oxygen Sensor） | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc., |
Why Not Other Suppliers
Customer Projects
Synthetic Biology Research Center

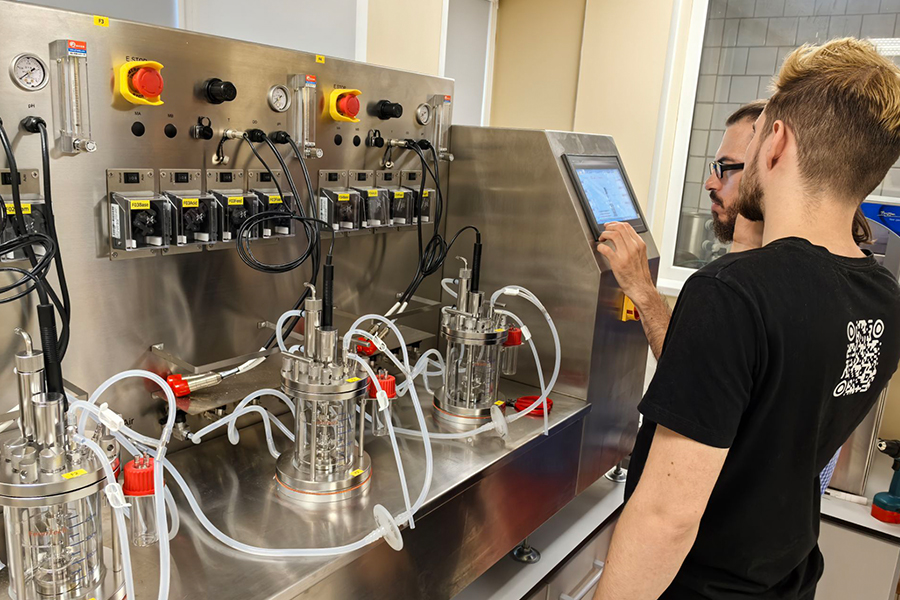

Vaccine Research Institute

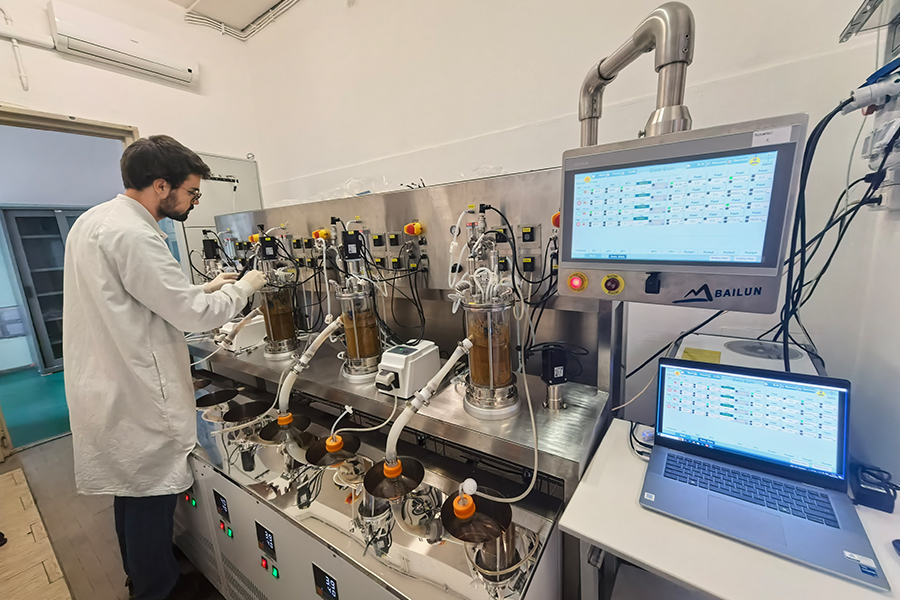

University Laboratory

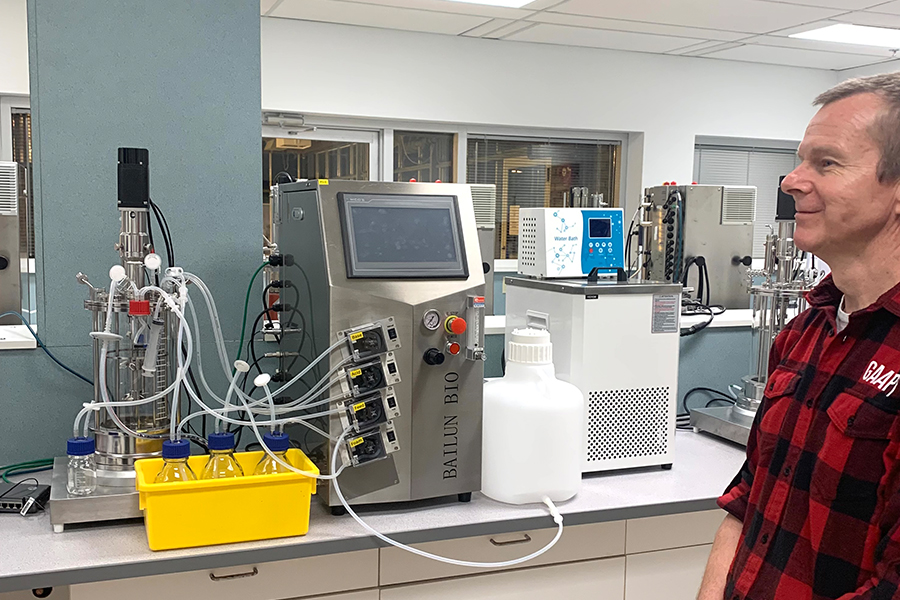

Biotechnology Startup
