Suspension Cell Bioreactor Manufacturer for Research, Scale-Up & Biopharmaceutical Production

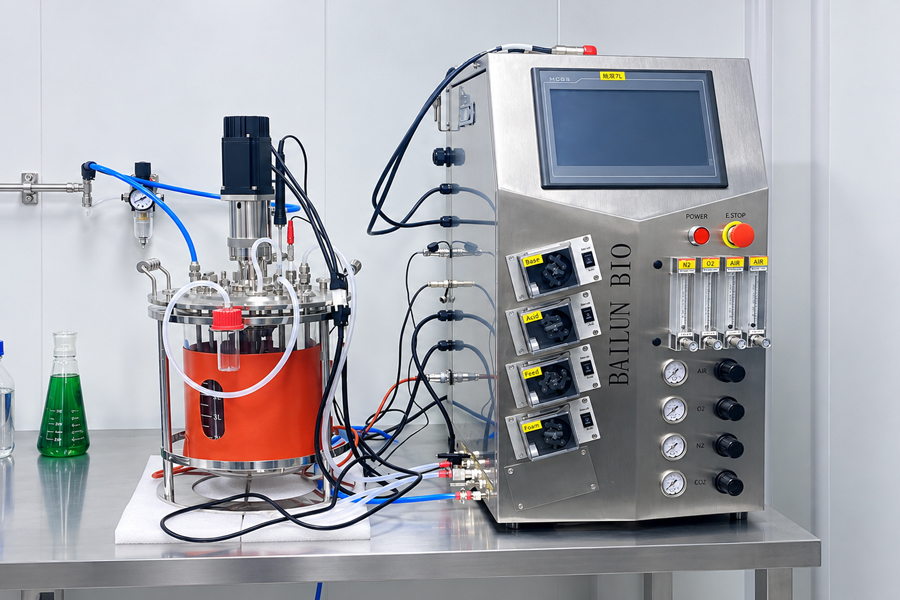

Glass bioreactors: 1L–30L

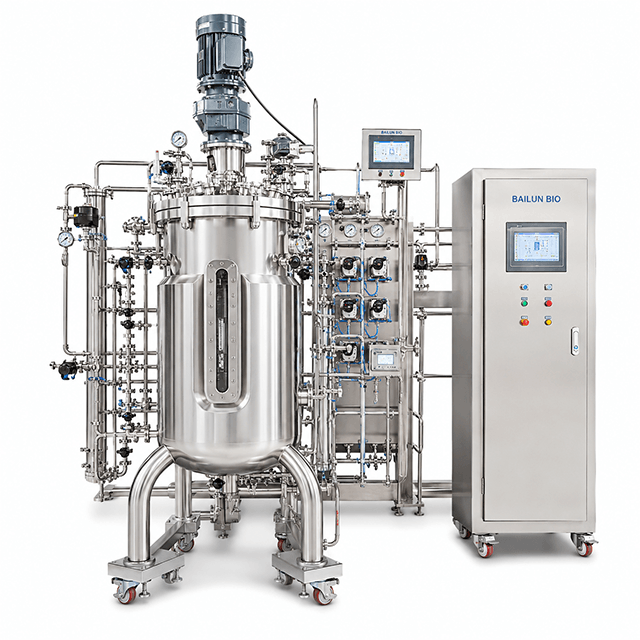

Stainless steel bioreactors: 5L–10KL
Low-shear agitation design
GMP-ready & customizable
25+ Years Bioreactor Manufacturing Experience
Exported to 30+ Countries
CE / ISO Certified
Complete One-stop Station Fermentation Solutions
Our Suspension Cell Bioreactor Solutions
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.
Low-Shear Agitation for Sensitive Cells
•Marine impellers
•Elephant-ear impellers
•Optimized agitation speeds
•Uniform mixing performance
•Reduced cell damage
Precise Cell Culture Control
•Automatic pH control
•DO cascade control
•Temperature control
•Foam control
•Feeding strategy management
Excellent Oxygen Transfer Performance
•Efficient oxygen delivery
•Uniform gas distribution
•Reduced bubble damage
•Stable dissolved oxygen levels
GMP-Oriented Engineering
•ECIP cleaning system
•IP sterilization system
•Aseptic sampling
•Sterile feeding
•Electronic records
•Audit trail support
Suspension Cell Bioreactor Applications
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.
| Parameter | Description |
| Total volume | Glass bioreactor 1L~40L ,stainless steel bioreactor 5L~10KL; |
| Working volume | 30%~70% |
| Tank | Glass bioreactor:glass wall with stainless steel lid and bottom, heating from jacket stainless steel bottom.Stainless steel bioreactor:inside electrolytic polishing, precision: 0.2-0.4um. Diameter and height ratio 1:1.5 |
| Stirring system | Magnetic drive, low shear mixing blades. Stir speed: glass bioreactor 50~300rpm ,stainless steel bioreactor 30~300rpm |
| Sterilization | Stainless steel bioreactor: sterilize in place (SIP), auto control by program;Glass bioreactor: off-site sterilization(Autoclave) |
| Clean | Stainless steel bioreactor clean in place by spray ball |
| Gas control | Provision for mixing at least four gases (Air, Oxygen, Nitrogen and CO2)Auto control by mass flow meter. Air flow 1vvm, O2/N2/CO2 0.1vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| Do control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling valve | Can sterilization separately, manual |
| Harvest | Stainless steel bioreactor zero dead zone bottom valve, can sterilization separately, manual |
| Weight system | Stainless steel bioreactor Mettler-Toledo, Switzerland |
| Pressure | Stainless steel bioreactor auto control, BD Germany pressure transmitter or Lambert differential pressure liquid level gauge. |
| Exhaust | Stainless steel bioreactor have condenser before exhaust, control by diagram valve / Proportional control valve. |
| Control parameters | 10 or 15 inch touch screen, Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), exhaust heating, exhaust filter, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor（Biomass）, Printing, Siemens touch screen, Double mechanical seal, 4-valves-group for feeding, Bottom valve auto, ASME certificate, CSA certificate, air flow 2vvm, etc. |
Why Not Other Suppliers
Customer Projects
Biotech Startup
University Cell Culture Center
Vaccine Research Institute
Biopharmaceutical Company
