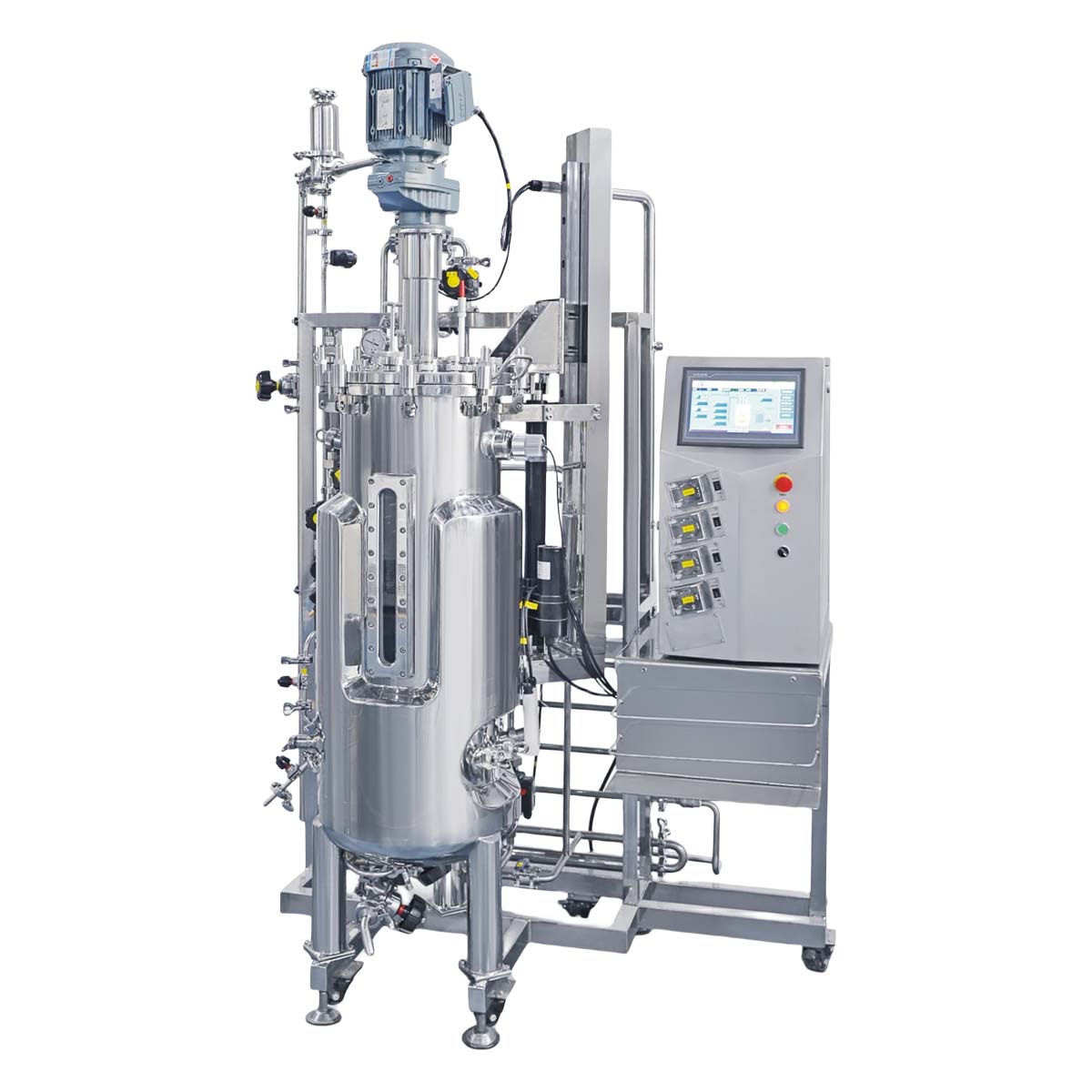

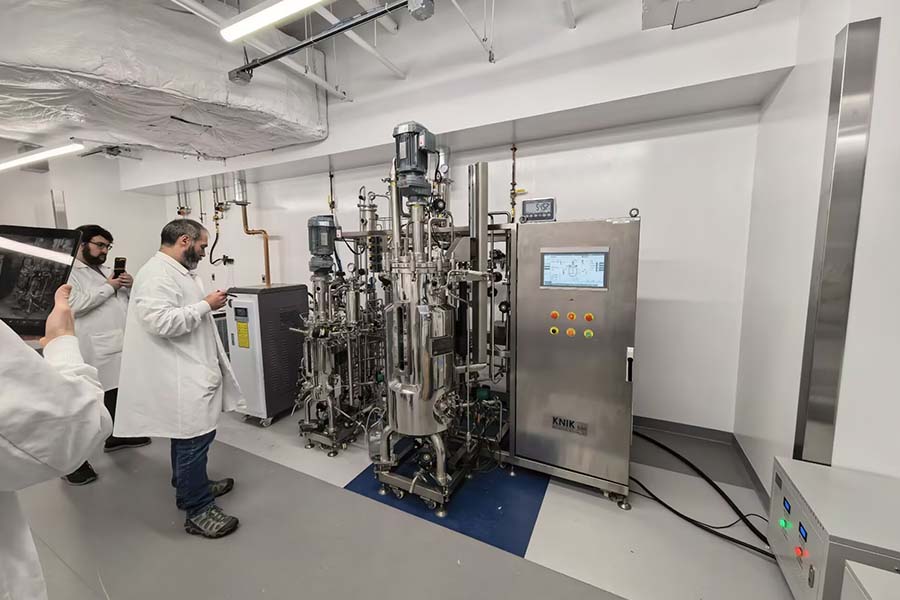

Stainless Steel Bioreactor Manufacturer for Pilot & Industrial Production
25+ Years Manufacturer
Export to 30+ Countries
CE / ISO / ASME Certified
OEM for Global Biotech Brands
Our Stainless Steel Bioreactor Solutions
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.

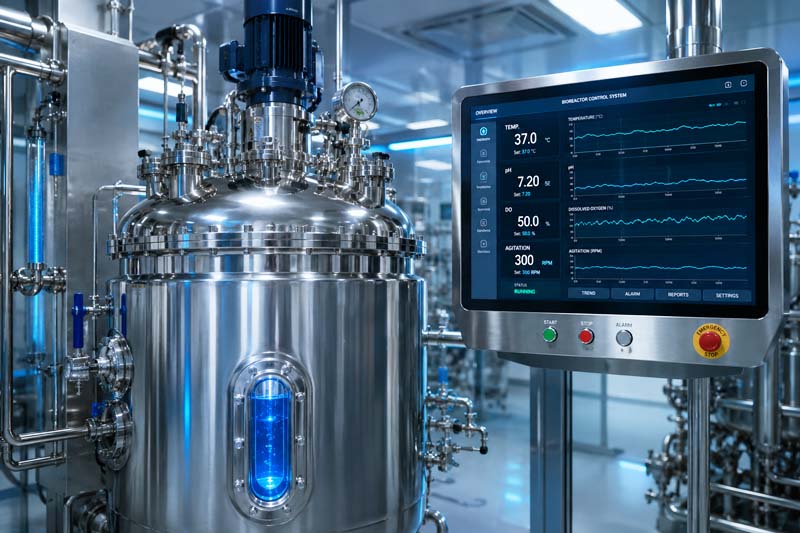

Precise Process Control
Advanced PID automatic control
Real-time pH / DO monitoring
Stable temperature & agitation control

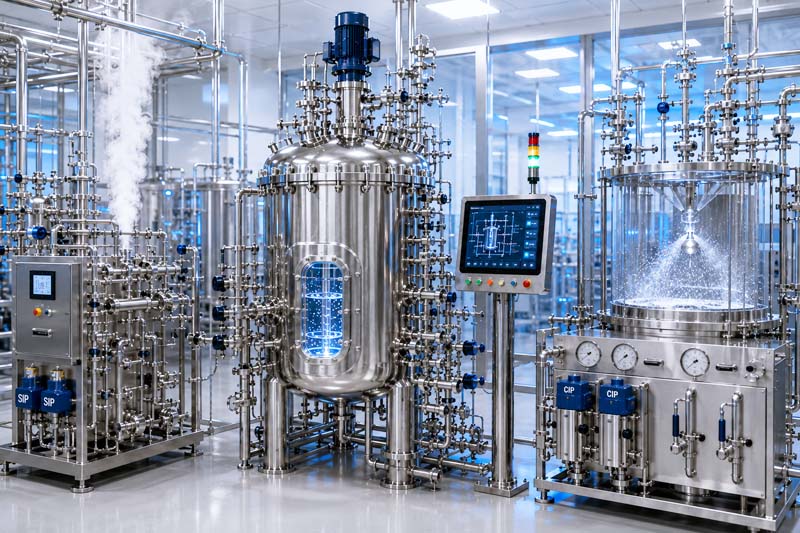

Flexible Modular Design
Custom vessel & agitation options
Multi-stage scale-up solutions
Compatible with SIP & CIP systems
Sterilization & GMP Design
Fully automatic SIP sterilization
CIP cleaning station optional
Aseptic feeding & sampling system

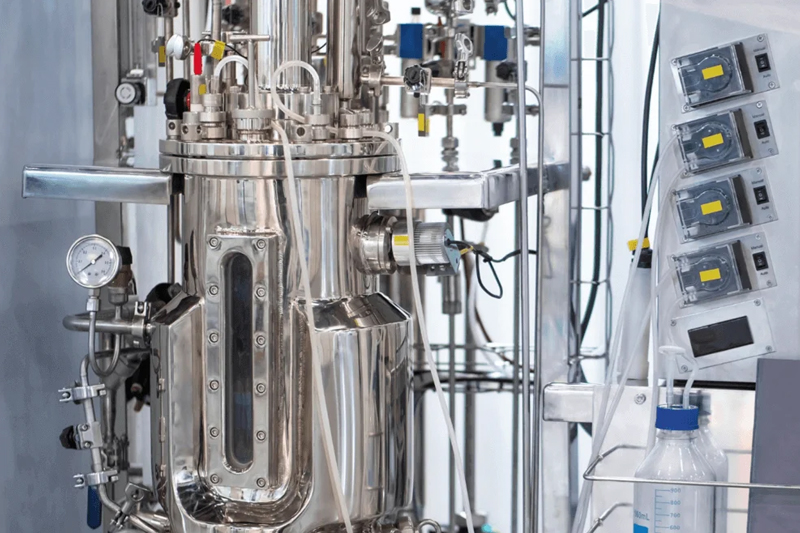

Premium Materials & Structure
SUS316/304L stainless steel vessel
Mirror polished internal surface
Durable industrial-grade frame

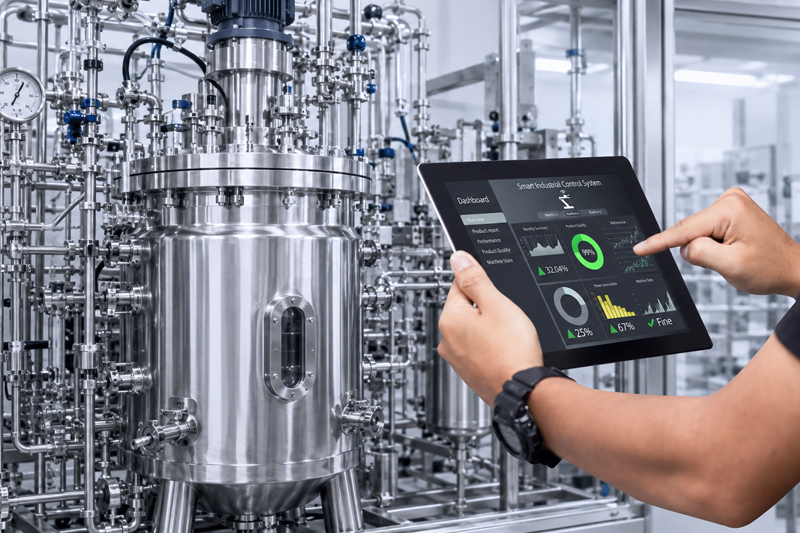

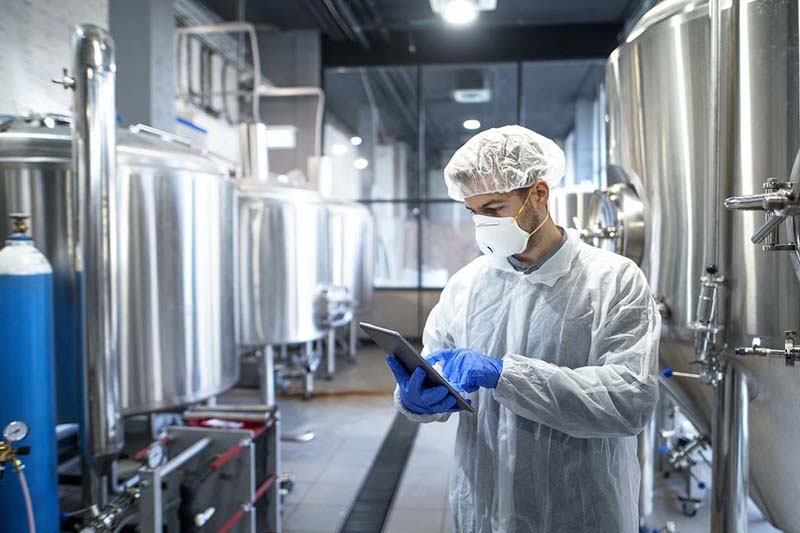

Smart Automation System
Siemens PLC touch screen
SCADA & remote monitoring optional
Data recording and recipe management

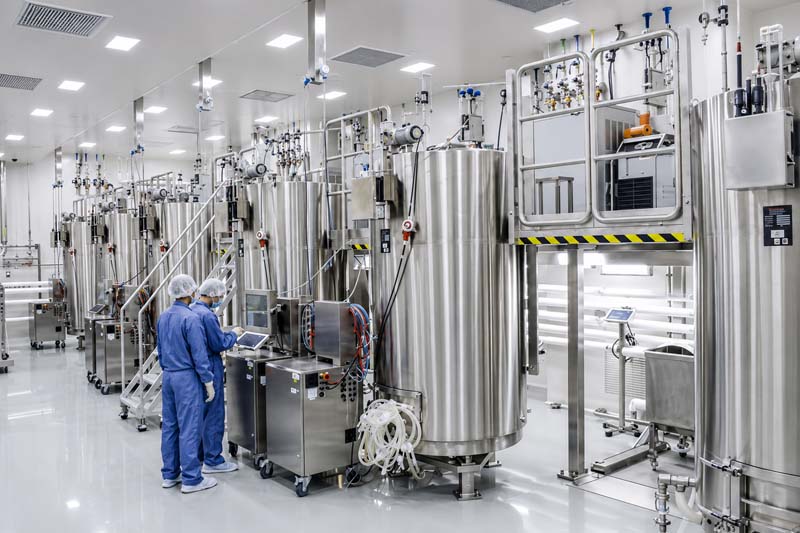

One-stop Fermentation Solutions
Integrated chiller & air compressor
Steam generator support
Upstream & downstream integration
Glass Bioreactor Applications
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.
| Parameter | Description |
| Total volume | 5L~200KL |
| Working volume | 30%~80% |
| Tank | Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5 |
| Stirring system | Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle |
| Stir speed: 50~1000rpm/50-400rpm | |
| Sterilization | Sterilize in place(SIP), auto control by program |
| Clean | Clean in place (CIP) by spray ball |
| Gas control | Control by rotor meter, air flow 1 vvm |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoam by peristaltic pump |
| Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| Do control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Sampling valve, can sterilization separately, manual |
| Harvest | Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto |
| Lid lift system | 30L-500L have lid lift system, 700-1000L have human hole. |
| Pressure | Auto control, BD Germany pressure transmitter |
| Exhaust | Have condenser before exhaust, control by diagram valve / Proportional control valve. |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate, CSA certificate, Batch culture, Seed transfer, etc. |
Why Not Other Suppliers

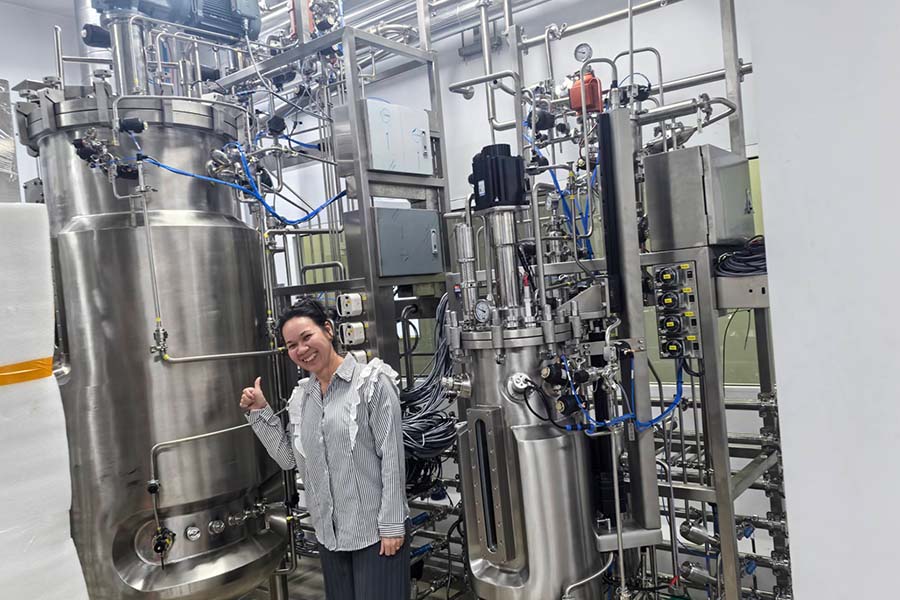

Customer Projects

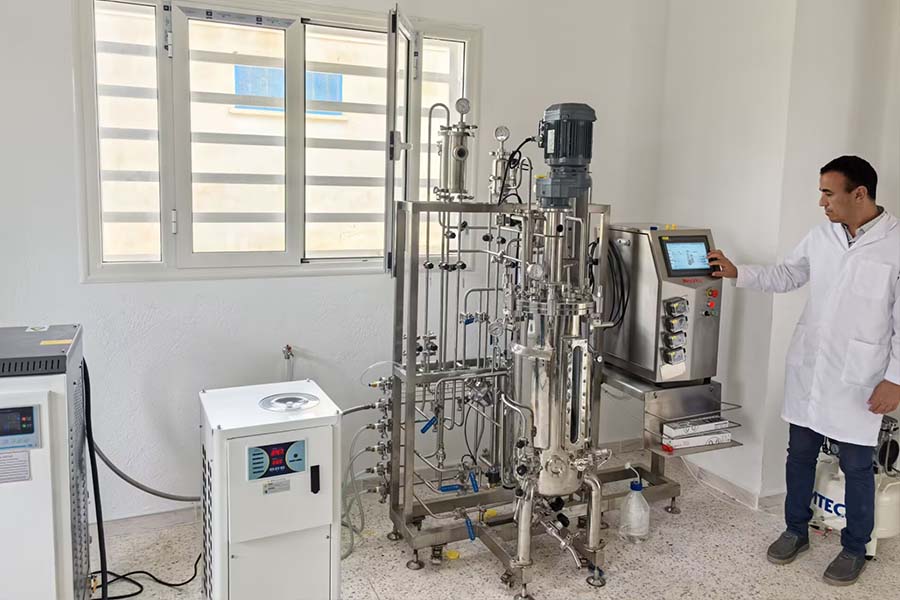

Laboratory Research
Biotech Startup
Food Processing Enterprise
Vaccine Production Center
