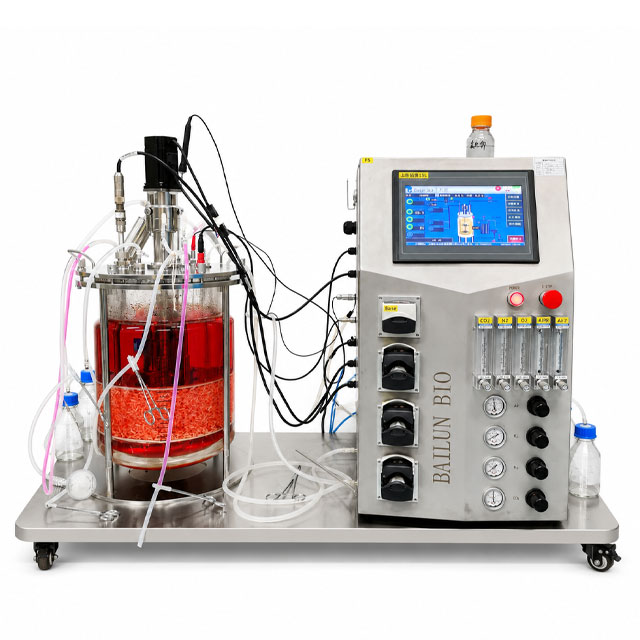

Bench Top Bioreactor Manufacturer for Laboratory & R&D
0.2L–40L scalable systems
High-accuracy process control
Flexible and customizable configurations
25+ Years Bioreactor Manufacturing Experience
Exported to 30+ Countries
CE / ISO Certified
Complete One-stop Station Fermentation Solutions
Our Bench Top Bioreactor Solutions
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.
Precise Process Control
•Advanced PID control algorithm
•Real-time pH / DO / temperature monitoring
•Stable agitation and aeration control
•High repeatability for laboratory experiments
Compact & Modular Design
•Space-saving laboratory configuration
•Easy installation and operation
•Flexible system expansion
High-Quality Construction
•High borosilicate glass vessel
•Stainless steel 316L framework
•Corrosion-resistant structure
•Durable laboratory-grade components
Intelligent Automation
•MCGS touch screen interface
•Automatic data recording
•Recipe storage and export
•Remote control optional
Flexible Sterilization Options
•Off-site sterilization support
•SIP optional for some models
•Easy vessel disassembly and cleaning
•Aseptic sampling and feeding design
Customizable Configurations
•Mechanical stirring or magnetic stirring
•Multi-gas inlet system
•Various sensor integration
•Customized software functions available
Bench Top Bioreactor Applications
We offer bioreactors (fermenters), animal cell bioreactors, bioreactor shakers, biological shakers, bottle rockers, and control systems, and recognize validation services are essential for meeting regulatory and operational requirements of fermenters and bioreactors.
| Parameter | Description |
| Total volume | 0.2L~40L |
| Working volume | 50%~70% |
| Tank | Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover |
| Stirring system | Mechanical drive(GJ type) or Magnetic drive(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable.Stir speed: 50~1000rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control（Dissolved Oxygen Sensor） | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc., |
Why Not Other Suppliers
Customer Projects

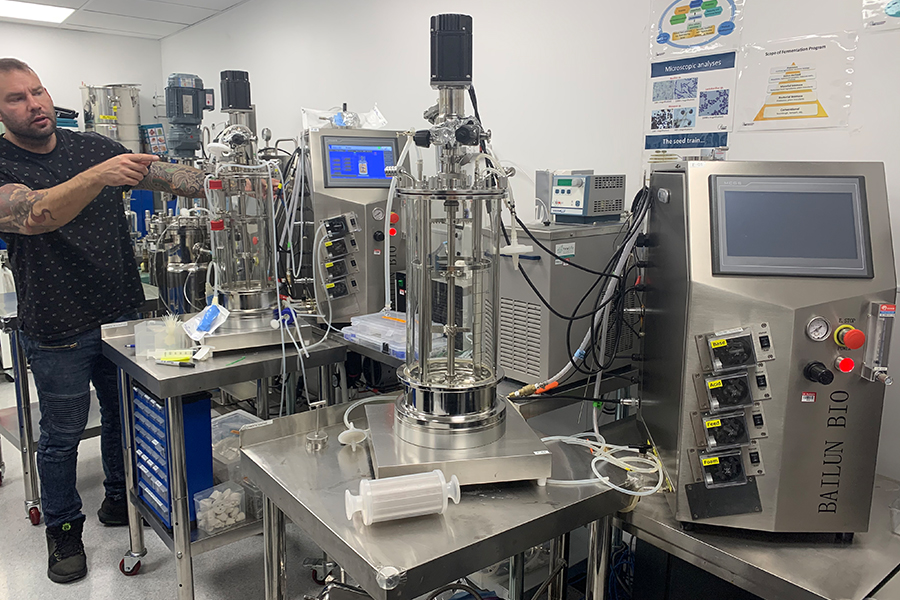

Synthetic Biology Laboratory
University Laboratory

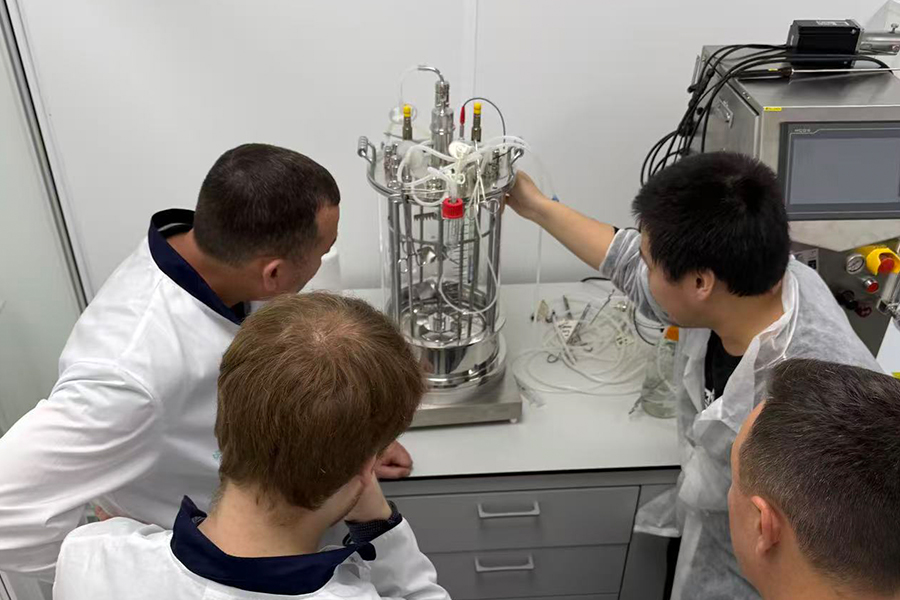

Vaccine Research Institute

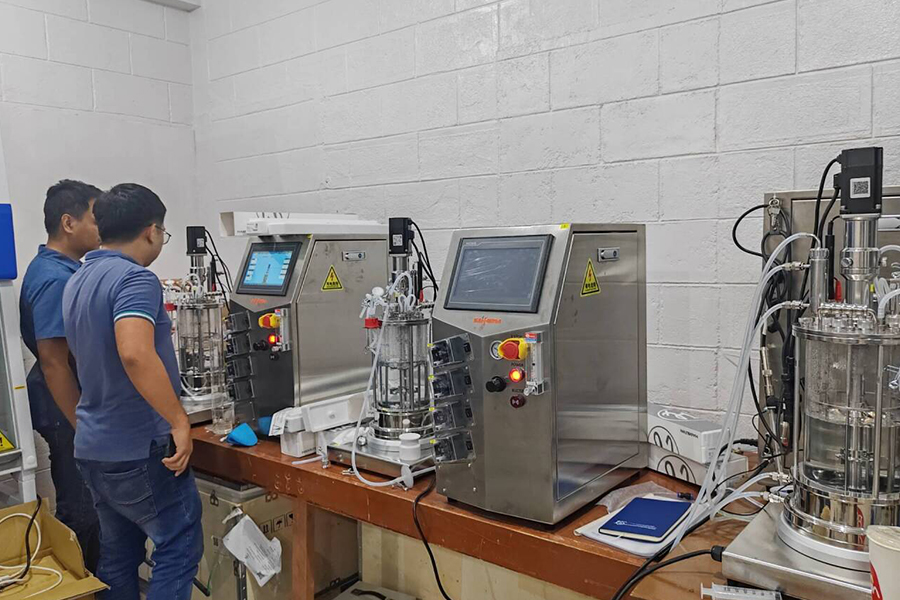

Biotech Startup
