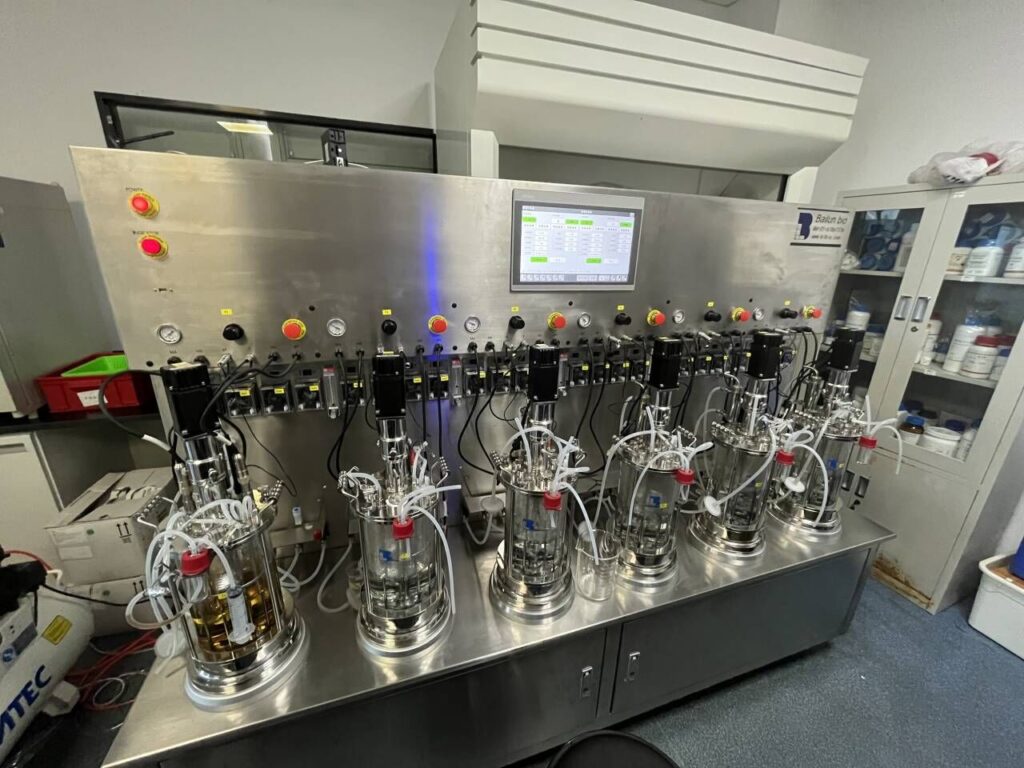

5L 6联机械搅拌玻璃发酵罐

No matter what field you are in: biotech research and development, enzyme fermentation, vaccine, or microbial research, you will find this machine extremely powerful, elegantly designed, without the unnecessary complexities and without compromising in quality.

Let’s explore why this fermenter is the smart choice for modern scientists and innovators like you!

Why Choose The 5L 6union Mechanical Agitation Glass Fermenter?

There has never been a better need than the one on high precision, simple to use, and compact fermenters. Here’s how this system answers that call:

• The view of the processes is as clear as glass with the sturdy vessel and stainless steel bottom.
• Flexible agitation and models: mechanical or magnetic drive: the agitation is paramount but select between mechanical or magnetic drive.
• Simple control of data with Siemens PLC and a color touchscreen.
• Small but strong features to be able to fit in any lab without compromising performance.
• Automatic feeding and antifoam in order to maintain your cultures healthy.
• Fits many types of cultures- microbes, yeast, mammalian and plant cells.

Curious about the specs? Let’s dive into the details.

技术规格

This is a brief glimpse of the specifications of the 5L 6联机械搅拌玻璃发酵罐 that makes it an all-purpose and effective system.

范围	D描述
总容积	0.2L、0.5L、1L、2L、3L、5L、10L、20L、30L、40L等
工作量	50%~70%
坦克	带不锈钢底部的单个玻璃容器。盖子由316L不锈钢制成，带端口，盖子上有冷凝器
搅拌系统	机械驱动（GJ型）或磁力驱动（GC型，底部/顶部驱动），3个六叶桨和1个泡沫破碎机，每个桨高度可调。 搅拌速度：50~1000rpm/50-500rpm
消毒	离位灭菌（高压灭菌器）
气体控制	由转子流量计控制，风量1-2vvm。
喂养	蠕动泵自动加料
消泡控制	蠕动泵自动添加消泡剂
温度控制	自动控制，电加热范围水源加5℃至70℃
PH值控制	PH 2.00-12.00±0.1，蠕动泵自动控制加酸/加碱，瑞士Hamilton/Mettler pH传感器。
溶解氧控制	0-150±3% 显示精度0.1%，DO传感器来自瑞士Hamilton/Mettler。 DO 与搅拌、氧气偶联。
采样	手动采样
控制参数	10或15英寸触摸屏，西门子PLC，具有控制参数（搅拌、pH、DO、温度、进料、报警、气体等）、数据分析、数据记录、数据输出、语言（RU/EN/CN）等定制功能
可选配置	远程控制、质量流量计（自动控制气体）、O2/N2/CO2、气体（CO2）排放分析、液位传感器、浊度（OD）传感器、ORP传感器、称重系统、活细胞传感器（生物质）、打印、西门子触摸屏等，

Built for Precision and Versatility

A glance can see the statement being made by the glass body of 5L 6联机械搅拌玻璃发酵罐 framed by stainless steel bottom. However, it is not all about appearance but it is designed to deliver.

Need to track pH and DO in real time?

Industry-trusted sensors out of Switzerland and automated control that keeps your culture within the parameters.

Worried about foam interfering with your process?

Automatic antifoam addition keeps your fermentation stable.

Fancy being able to run batch, fed-batch or even animal cell cultures?

This fermenter handles them all seamlessly.

Advanced Agitation System

It can never be easier to decide between mechanical and magnetic agitation:

• Mechanical drive (GJ type):Direct coupling on top, perfect for standard microbial cultures.
• Magnetic drive (GC type):Ideal for delicate cell lines; choose bottom or top drive.

Its mixing is great and you can control it because of the three six-blade paddles and foam breaker, which are adjustable in height, protecting delicate cells.

Ever wondered how to adjust mixing for different media?

It’s as simple as changing paddle height and speed, thanks to a wide stirring range (50–1000 rpm).

Reliable Temperature & Gas Control

Maintaining the perfect environment for your culture is vital. That’s why this fermenter features:

• Temperature auto-regulated:using electric heating to maintain the medium at + 5 C to 70 C.
• Gas flow control:Rotameter keeps airflow steady (1–2 vvm standard).

Additional gases available on request: O2, N2 and CO2 upon need.

Do you require accurate control to aerobic vs. anaerobic process? With this fermenter, one just puts his/her airflow and monitors data about DO.

Intelligent Automation and Data Logging

Gone are the days of manual notes and guesswork. The 5L 6联机械搅拌玻璃发酵罐 comes with:

• Siemens PLC & touchscreen interface (10″ or 15″):monitor and adjust key parameters in real time.
• Automatic feeding:& antifoam control via peristaltic pumps.
• Analysis and export of data:Review trends, compare runs and make faster.
• Alarm system:Stay informed if parameters drift.

Ever wondered if your culture conditions drift at night? To be sure, now, you can see data logs and trends.

Applications: Where Innovation Meets Utility

This fermenter is engineered to meet diverse research needs:

• Microbial cultures (bacteria, yeast, fungi)
• Enzyme and protein production
• Vaccine development (animal and human)
• Mammalian cell culture (CHO, HEK293)
• Plant cell and algae cultivation

It is flexible to be used in R&D laboratories, pilot laboratories, as well as teaching laboratories.

Compact Design, Big Impact

Lab space is precious. The small footprint of this fermenter on a bench or a pilot-scale platform is capable of performing large, the features of this fermenter:

• Four peristaltic pumps installed on the control box.
• Stainless steel lid with multiple ports.
• Integrated condenser keeps vapors controlled.
• Simple, stable structure with user-friendly design.

What Makes It Different?

• Off-site autoclave sterilization:can be used to save installed SIP cost of small labs.
• Transparency of culture:easy to see foam, color or sedimentation.
• Modular:sensors, gas blending or biomass monitoring can be added at any time.
• Easy to use:In fact, new personnel are able to get acquainted with the interface within a short time.
• Flexible operation:suitable to batch, fed-batch or a cell process.

Ever thought how it is a privilege to have your culture perform live with no lid opened?

This glass fermenter lets you do exactly that.

Real-World Advantages

In the case of low-output research laboratories: Qualitative control at an affordable price; effortless sterilization.

• In the Universities:Excellent teacher tool; real-time statistics and clear vessel appearances.
• In the case of biotech startups:Agile enough to experiment on the processes is then scalable.

Optional Customization

Because every lab is unique, you can add:

• Remote control & monitoring
• O2/N2/CO2 mass flow meters
• Exhaust gas (CO2) analysis
• Level, turbidity (OD), ORP, and biomass sensors
• Weight system for precise feeding
• Printing & data logging tools

Consider the situation where your projects become bigger and therefore you need to expand the capacity of your lab without purchasing a new fermenter.

Why Use 5L 6union Mechanical Agitation Glass Fermenter?

• Small footprint, high functionality.
• Clear visibility + reliable automation.
• Adjustable agitation for various culture types.
• Industry-leading Swiss sensors.
• Siemens PLC for dependable data control.
• Easy sterilization and cleaning.

这 5L 6联机械搅拌玻璃发酵罐 can be mounted in any position, is highly accurate and easy to operate which makes it an ideal partner to any lab that places innovation and quality at the forefront.

Ready to Elevate Your Research?

You can be running bacterial cultures, developing vaccines, or investigating cell therapy, but this 5L 6联机械搅拌玻璃发酵罐 keeps your process in your control.

联系百伦生物 today for pricing, demo, or expert advice. Grow your lab of tomorrow.

经常问的问题

Q: Can I sterilize the entire vessel?

Yes, it is for off-site autoclave sterilization that is 100 percent sterile before every run.

Q: Is it hard to integrate new sensors?

No wrong options ports, Siemens PLC upgrades are easy.

Q: How can I automate feeding strategies?

Built-in peristaltic pumps allow precise, programmable feeding.

Q: Can I export my data?

Yup, standard data output is easy to document and analyze.

Q: Is this suitable for mammalian cells?

Yes, to avoid any shear damage: select magnetic drive.
