10L Mechanical mixing glass bioreactor BLBIO-10GJ Control and Innovation All within a Single System The 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ is more than a glass vessel. It is a comprehensive system, which will allow you to do more: Measure and correct pH, DO, temperature and stirring real time. Program feeding profiles for complex fed-batch experiments. Export and record all data in order to analyze and be in compliance. Optional sensors can drive expansion of cell density, ORP or turbidity. How many times did you wish that you can see inside fermenter? Now, you truly can. Compact Yet Powerful Don’t let the lab-friendly size fool you: Direct mechanical mixing ensures strong and consistent agitation. Foam breaker prevents messy overflows. Flexible peristaltic pumps handle acids, bases, nutrients, or antifoam. It translates to less than one failed batches, accurate data, and scale-up. Intelligent Control with Siemens PLC Simple touchscreen menus. Real-time graphs and logs. Multi-language support (English, Chinese, Russian). Alarms to prevent parameter drift. Easy export to spreadsheet or LIMS systems. Your team does not have to work on manual monitoring as they can concentrate on research. Process Flexibility: Batch, Fed-Batch, and Beyond The 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ supports: Batch fermentation. Fed-batch fermentation. Cell culture applications. Before migrating to stainless steel, you are able to simulate production processes, or fine-tune media recipes on a real time basis. Planning to scale up? The information and process understanding that you take here will actually assist your pilot and industrial scale fermenters. Applications Across Industries Perfect for: Microbial fermentation (E. coli, yeast, Bacillus etc.) Mammalian cell culture (CHO, HEK293) Algal cultivation Enzyme production Recombinant protein research Teaching labs & demonstration setups It is particularly good training and troubleshooting because of the glass body. Quality You Can See and Feel From German-made sensors (Hamilton/Mettler) to polished stainless steel lids and FDA-grade gaskets, every part is chosen for: Durability. Sterility. Easy validation and cleaning. And with modular design, you are able to upgrade your system anytime. Efficient Stirring & Gas Exchange Why mechanical mixing? Powerful, dead certain shear forces - just like bacteria and yeast like. Adjustable paddle height matches different media volumes. Allows more intensive DO control and improved mixing with regard to bubble-driven systems. Combine that with gas input, which is Rosenwein controlled by rotor meters and you have actual flexibility in the process. Precision Temperature Control Electric heating jacket. Auto-adjust based on real-time sensor data. Water source adds flexibility from 5℃ to 70℃. Ever had culture death due to overheating? Automated safety cutoffs and real-time monitoring reduce that risk. Easy Sterilization: Autoclave Compatible To clean, all one has to do is simply remove the glass vessel and perform a regular autoclave cycle. Fast, simple, and effective. The plate with an impeller system and stainless steel lid is also autoclavable and validation can be done easily. Scalability: Lab to Production Directly, your outcome in 10L Mechanical Mixing Glass Bioreactor BLBIO-10GJ can be applied to: 20L pilot fermenters. 100L stainless steel systems. Even large 5000L+ production tanks. Since the geometry and control logic makes the system consistent with those used in an industrial system, your process can be able to scale more easily. Customizable to Your Research Add optional features anytime: Mass flow meters for automatic gas control. Turbidity or live cell sensors. ORP sensors to track oxidation/reduction potential. Remote viewing and control. Automatic report printing. Your research evolves, so should your equipment. Built for Modern Labs Small footprint, bench-top or floor-standing. Low power consumption. Modern aesthetic matches teaching labs or R&D suites. Does your current fermenter clutter the bench? This system keeps cables, pumps, and electronics neatly organized. User-Friendly for All Levels From experienced scientists to student users: Clear menus and icons. Minimal training required. Built-in safety interlocks and alarms. Training new staff? They’ll be confident faster. Integrated Data & Analysis Record every reading: pH, DO, temperature, stir speed. Export to Excel, CSV, or your LIMS. Use data for trend analysis, reports, or regulatory compliance. Turn every experiment into a learning opportunity. Global Standards & Support BaiLun Bio supports clients worldwide with: Multilingual interface. Compliance with CE, ISO, and other international standards. Support in English, Chinese, and Russian. Summary: Key Features ✅ 10L borosilicate glass vessel ✅ Mechanical stirring, adjustable paddles ✅ Siemens PLC touchscreen control ✅ Real-time pH, DO, temperature monitoring ✅ Automatic feeding and antifoam systems ✅ Exportable data and remote upgrade options ✅ Easy sterilization in standard lab autoclave Ready to Upgrade Your Lab? Just imagine having a difference: real-time visualization, improved control, and availability of reliable data all in a small package of one. The 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ is not only a device. It’s your partner in discovery. Contact BaiLun Bio to: ✅ Request a quote ✅ Get a virtual demo ✅ Learn how labs worldwide are innovating with us Empower Your Research Today See your fermentation like never before. Control it more precisely. Scale it more confidently. That is the strength of 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ.

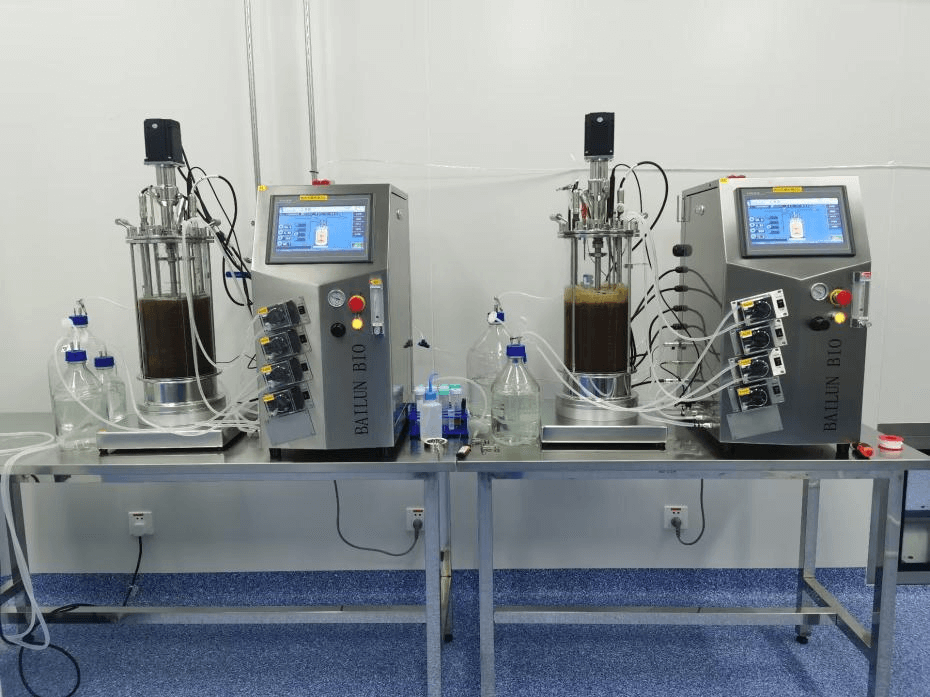

10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ

Do you want to take your experiments to a higher scale of fermentation? That is like seeing in real time your process running, complete control of all parameters with the freedom to tinker, iterate, and scale.

And that is the guarantee of the 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ, a combination of aesthetic beauty, enhanced automation and mechanical agitation making it ideal companion to universities, biotech startups and research facilities everywhere across the world.

INQUIRY

脸书-f YouTube 领英 Whatsapp 信封
Product Description

Why Choose 这 Mechanically Agitated Glass Bioreactor?

Transparency is not an aesthetic issue only, but also changes the way you approach your work:

  • Real-time observation:Watch cells, media, and foaming behavior.
  • Easy cleaning & validation:Smooth borosilicate glass walls.
  • Great to aid research:Use your eyes to see problems before they reach your batch.
  • Educational value:Students and trainees see fermentation happen live.

In addition to all this, with 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ, precision controls and customizable software are also provided.

技术规格 的 Mechanically Agitated Glass Bioreactor

Let’s explore what makes this system special.

范围 D描述
总容积 0.2L~30L
工作量 50%~70%
坦克 带不锈钢底部的单个玻璃容器。盖子由316L不锈钢制成，带端口，盖子上有冷凝器
搅拌系统 机械驱动（GJ型）或磁力驱动（GC型，底部/顶部驱动），3个六叶桨和1个泡沫破碎机，每个桨高度可调。

搅拌速度：50~1000rpm/50-500rpm
消毒 离位灭菌（高压灭菌器）
气体控制 由转子流量计控制，气流2vvm。
喂养 蠕动泵自动加料
消泡控制 蠕动泵自动添加消泡剂
温度控制 自动控制，电加热范围水源加5℃至70℃
PH值控制 PH 2.00-12.00±0.1，蠕动泵自动控制加酸/加碱，瑞士Hamilton/Mettler pH传感器。
DO control（Dissolved Oxygen Sensor） 0-150±3% 显示精度0.1%，DO传感器来自瑞士Hamilton/Mettler。 DO 与搅拌、氧气偶联。
采样 手动采样
控制参数 10或15英寸触摸屏，西门子PLC，具有控制参数（搅拌、pH、DO、温度、进料、报警、气体等）、数据分析、数据记录、数据输出、语言（RU/EN/CN）等定制功能
可选配置 远程控制、质量流量计（自动控制气体）、O2/N2/CO2、气体（CO2）排放分析、液位传感器、浊度（OD）传感器、ORP传感器、称重系统、活细胞传感器（生物质）、打印、西门子触摸屏等，

Control and Innovation All within a Single System

这 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ is more than a glass vessel.

  • It is a comprehensive system, which will allow you to do more:
  • Measure and correct pH, DO, temperature and stirring real time.
  • Program feeding profiles for complex fed-batch experiments.
  • Export and record all data in order to analyze and be in compliance.
  • Optional sensors can drive expansion of cell density, ORP or turbidity.

How many times did you wish that you can see inside fermenter? Now, you truly can.

Compact Yet Powerful

Don’t let the lab-friendly size fool you:

  • Direct mechanical mixing ensures strong and consistent agitation.
  • Foam breaker prevents messy overflows.
  • Flexible peristaltic pumps handle acids, bases, nutrients, or antifoam.

It translates to less than one failed batches, accurate data, and scale-up.

Intelligent Control with Siemens PLC

  • Simple touchscreen menus.
  • Real-time graphs and logs.
  • Multi-language support (English, Chinese, Russian).
  • Alarms to prevent parameter drift.
  • Easy export to spreadsheet or LIMS systems.

Your team does not have to work on manual monitoring as they can concentrate on research.

Process Flexibility: Batch, Fed-Batch, and Beyond

这 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ supports:

  • Batch fermentation.
  • Fed-batch fermentation.
  • Cell culture applications.

Before migrating to stainless steel, you are able to simulate production processes, or fine-tune media recipes on a real time basis.

Planning to scale up? The information and process understanding that you take here will actually assist your pilot and industrial scale fermenters.

Applications Across Industries

Perfect for:

  • Microbial fermentation (E. coli, yeast, Bacillus etc.)
  • Mammalian cell culture (CHO, HEK293)
  • Algal cultivation
  • 酶生产
  • Recombinant protein research
  • Teaching labs & demonstration setups

It is particularly good training and troubleshooting because of the glass body.

Quality You Can See and Feel

From German-made sensors (Hamilton/Mettler) to polished stainless steel lids and FDA-grade gaskets, every part is chosen for:

  • Easy validation and cleaning.

And with modular design, you are able to upgrade your system anytime.

Efficient Stirring & Gas Exchange

Why mechanical mixing?

  • Powerful, dead certain shear forces – just like bacteria and yeast like.
  • Adjustable paddle height matches different media volumes.
  • Allows more intensive DO control and improved mixing with regard to bubble-driven systems.

Combine that with gas input, which is Rosenwein controlled by rotor meters and you have actual flexibility in the process.

Precision Temperature Control

  • Electric heating jacket.
  • Auto-adjust based on real-time sensor data.
  • Water source adds flexibility from 5℃ to 70℃.

Ever had culture death due to overheating? Automated safety cutoffs and real-time monitoring reduce that risk.

Easy Sterilization: Autoclave Compatible

  • To clean, all one has to do is simply remove the glass vessel and perform a regular autoclave cycle.
  • Fast, simple, and effective.
  • The plate with an impeller system and stainless steel lid is also autoclavable and validation can be done easily.

Scalability: Lab to Production

Directly, your outcome in 10L Mechanical Mixing Glass Bioreactor BLBIO-10GJ can be applied to:

  • 20L pilot fermenters.
  • 100L stainless steel systems.
  • Even large 5000L+ production tanks.

Since the geometry and control logic makes the system consistent with those used in an industrial system, your process can be able to scale more easily.

Customizable to Your Research

Add optional features anytime:

  • Mass flow meters for automatic gas control.
  • Turbidity or live cell sensors.
  • ORP sensors to track oxidation/reduction potential.
  • Remote viewing and control.
  • Automatic report printing.

Your research evolves, so should your equipment.

Built for Modern Labs

  • Small footprint, bench-top or floor-standing.
  • Low power consumption.
  • Modern aesthetic matches teaching labs or R&D suites.

Does your current fermenter clutter the bench? This system keeps cables, pumps, and electronics neatly organized.

User-Friendly for All Levels

From experienced scientists to student users:

  • Clear menus and icons.
  • Minimal training required.
  • Built-in safety interlocks and alarms.

Training new staff? They’ll be confident faster.

Integrated Data & Analysis

  • Record every reading: pH, DO, temperature, stir speed.
  • Export to Excel, CSV, or your LIMS.
  • Use data for trend analysis, reports, or regulatory compliance.
  • Turn every experiment into a learning opportunity.

Global Standards & Support

百伦生物 supports clients worldwide with:

  • Multilingual interface.
  • Compliance with CE, ISO, and other international standards.
  • Support in English, Chinese, and Russian.

Summary: Key Features

✅ 10L borosilicate glass vessel

✅ Mechanical stirring, adjustable paddles

✅ Siemens PLC touchscreen control

✅ Real-time pH, DO, temperature monitoring

✅ Automatic feeding and antifoam systems

✅ Exportable data and remote upgrade options

✅ Easy sterilization in standard lab autoclave

Ready to Upgrade Your Lab?

Just imagine having a difference: real-time visualization, improved control, and availability of reliable data all in a small package of one.

这 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ is not only a device. It’s your partner in discovery.

联系百伦生物 to:

✅ Request a quote

✅ Get a virtual demo

✅ Learn how labs worldwide are innovating with us

Empower Your Research Today

See your fermentation like never before.

  • Control it more precisely.
  • Scale it more confidently.

That is the strength of 10L Mechanically Agitated Glass Bioreactor BLBIO-10GJ.
