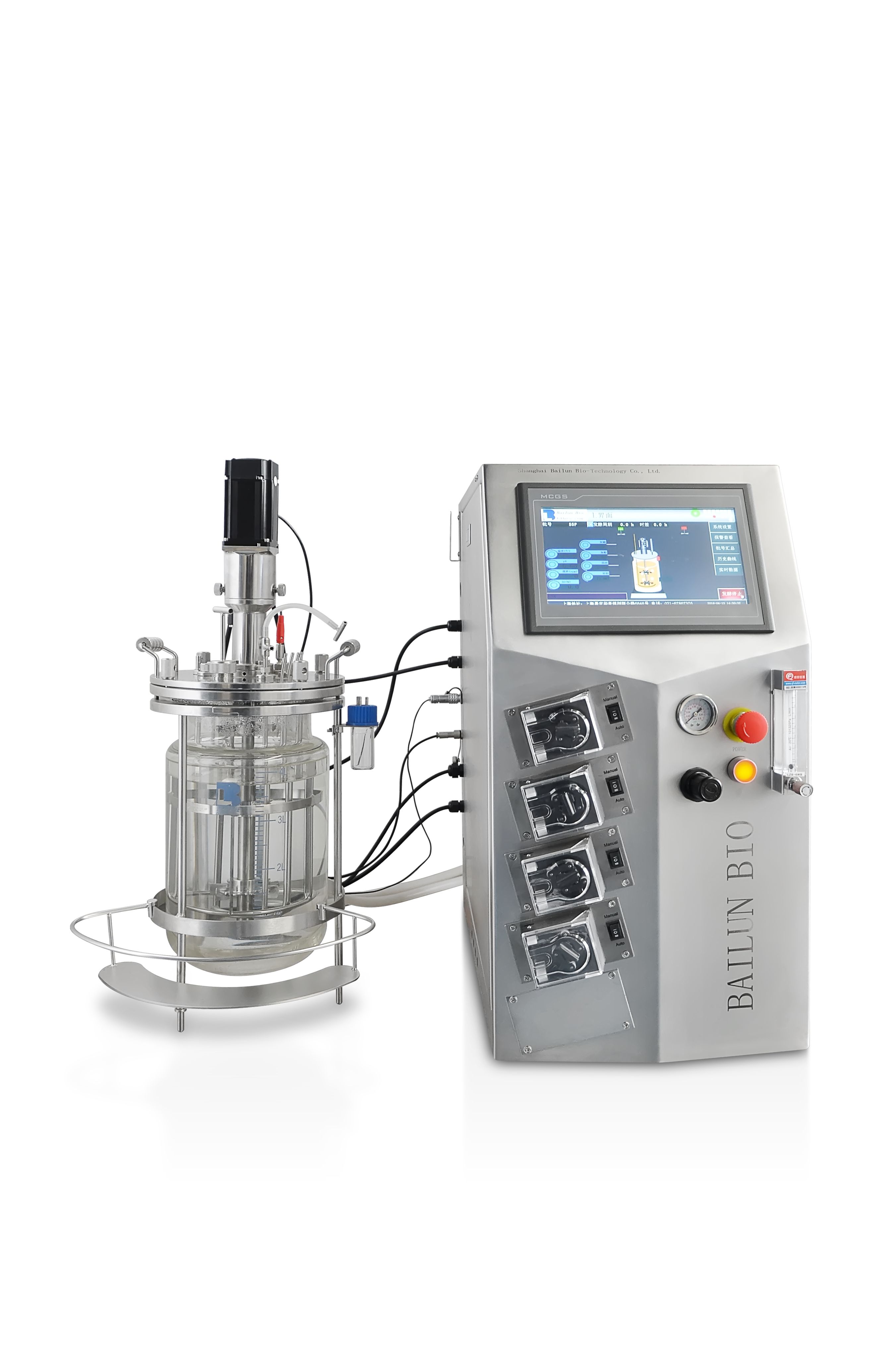

1L Glass Bioreactor for Lab Use
The 1L Jacketed Glass Bioreactor from BAILUN is designed for laboratory research, microbial fermentation, and small-scale process development. With an off-site sterilization glass fermenter design, the system provides flexible operation, reliable performance, and precise control.
This benchtop bioreactor is ideal for universities, research institutes, and biotech companies seeking a stable and easy-to-use fermentation solution.
Applications of 1L Glass Bioreactor for Lab Use
Microbial Fermentation
Suitable for yeast, bacteria, and fungi cultivation, widely used in fermentation research and process optimization.
Applications include:
Yeast Cultivation
Bacterial Fermentation
Fungal Fermentation
Probiotic Research
Enzyme Production
Fermentation Process Optimization
Cell Culture Research
With appropriate configurations, the system can be used for:
Mammalian Cell Culture
Insect Cell Culture
Suspension Cell Culture
Recombinant Protein Expression
Stem Cell Research
Process Development
Ideal for small-scale experiments, pilot testing, and scale-up validation.
Suitable for:
Laboratory Fermentation Studies
Process Screening
Biotechnology R&D
Fermentation Optimization
Scale-Up Validation
Key Features of Off-Site Sterilization Glass Fermenter
Off-Site Sterilization Design
The glass vessel can be sterilized separately, offering flexible operation and easy maintenance. This design reduces downtime and improves laboratory efficiency.
Advantages include:
Flexible operation
Easy vessel cleaning
Reduced contamination risk
Improved laboratory workflow
Convenient maintenance
Precise Control System
Accurate control of temperature, pH, dissolved oxygen (DO), and agitation ensures stable experimental conditions.
Control functions include:
Temperature Control
pH Monitoring
DO Monitoring
Agitation Speed Control
Airflow Control
Anti-foam Control
The intelligent control system ensures stable and reproducible fermentation performance.
High-Quality Borosilicate Glass
The transparent glass vessel provides excellent chemical resistance and allows real-time observation of the fermentation process.
Benefits include:
Excellent transparency
High corrosion resistance
Durable laboratory-grade glass structure
Easy cleaning and maintenance
Real-time process observation
Researchers can directly monitor microbial growth, foam conditions, and mixing performance during operation.
Easy Operation & Low Failure Rate
User-friendly system with simple operation, easy learning curve, and reliable long-term performance.
Advantages include:
Simple operation interface
Stable laboratory performance
Low maintenance requirements
Reliable long-term operation
Compact benchtop structure
Flexible Configuration
Supports multiple optional components to meet different laboratory research needs.
Advanced Temperature Control System
The system features a high-efficiency temperature control design including:
Semi-circular stainless steel jacketed bottom
Built-in heat exchanger
Internal heat exchange baffles
This structure ensures efficient hot/cold water circulation and rapid heat transfer for precise temperature control during fermentation.
The jacketed vessel structure improves process stability and cultivation consistency for laboratory fermentation applications.
Technical Specifications
Item | Specification |
|---|---|
Total Volume | 1L |
Working Volume | 0.3–0.8L |
Material | Borosilicate Glass Double-wall Vessel, SS316L Lid |
Agitation | Mechanical / Magnetic Stirring |
Control Parameters | pH, DO, Temperature, Anti-foam2vvm, Air Flow, Agitation |
Sterilization | Off-site Sterilization |
Application | Laboratory / R&D / Fermentation |
Available Configurations
Standard Configuration
Glass vessel with paddles
Agitation system
Temperature control system
pH sensor
DO sensor
Peristaltic pumps 4pcs (acid/base/antifoam/feeding)
Siemens PLC 1200
Color touchscreen program control
Data logging system
Heating by jacket water circulation
Optional Configuration
Process Control Options
Remote control
Mass flow meter
Variable speed pump
Proportional control valve (exhaust)
Program software update
Gas Control Options
Gas inlet (O2 / N2 / CO2 / H2 / CO)
Exhaust gas analysis (O2 / CO2 / CH4 / H2)
Sensor Options
Level sensor
Optical density (OD) sensor (Turbidity)
ORP sensor (anaerobic cultivation)
Glucose detection
Weight / Load cell system (fermentation tank/feeding)
Live cell sensor (Biomass)
Interface Expansion
Printing
15” color touch screen
Siemens touch screen optional
Scalable & Interchangeable Design
The culture vessels are interchangeable, allowing flexible scale-up and process development.
Available volumes include:
1L
2L
3L
5L
7L
10L
15L
20L
The interchangeable vessel design simplifies laboratory process optimization and biotechnology scale-up studies.
Why Choose BAILUN Glass Bioreactor
Bailun is a professional manufacturer of laboratory glass bioreactors and fermentation systems for biotechnology, pharmaceutical, food, and academic research industries.
Advantages include:
Direct factory supply
OEM & customization available
Rich export experience (EU & USA markets)
Technical support and after-sales service
Competitive pricing for distributors and OEM partners
Frequently Asked Questions
What is a 1L glass bioreactor used for?
A 1L glass bioreactor is used for laboratory microbial fermentation, mammalian cell culture, enzyme production, and biotechnology research applications.
Does the system support off-site sterilization?
Yes. The vessel can be sterilized separately to support flexible laboratory operation and aseptic fermentation processes.
Can the system support mammalian cell culture?
Yes. With appropriate configurations, the system supports mammalian cell culture, insect cell culture, and suspension cultivation applications.
What is the advantage of the double wall jacketed design?
The double wall jacketed structure provides stable temperature control and improves cultivation consistency during fermentation experiments.
Can the bioreactor be customized?
Yes. Bailun provides customized vessel structures, sensor configurations, gas control systems, and automation solutions according to laboratory requirements.
Request a Quote for 1L Glass Bioreactor
Looking for a reliable supplier of lab-scale glass bioreactors?
Contact us today to get:
Latest price
Technical datasheet
Customized solution
Laboratory process support
Global technical services
